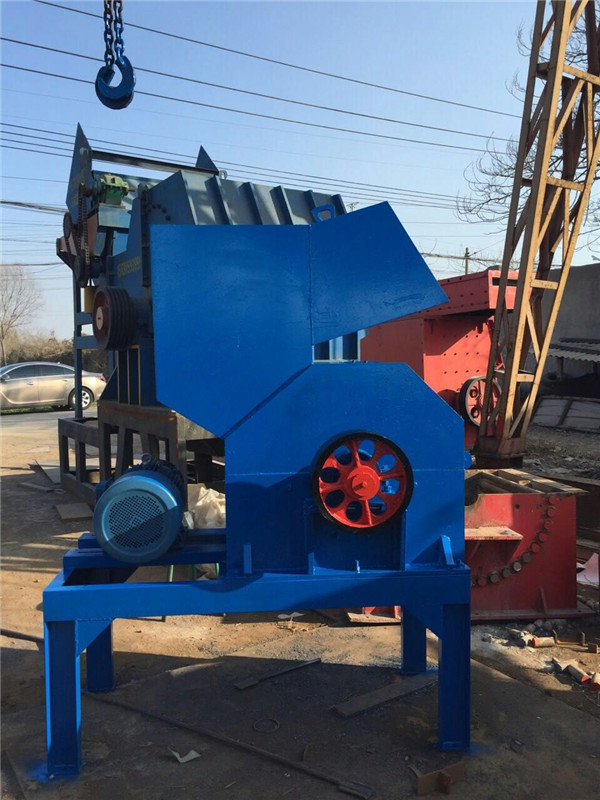

Small Metal Crusher

 Description of Small Metal Crusher:

Small metal crushers produced are mainly employed to grind large size metallic material into into solid metal lumps or granules, thus reducing transport costs and improving the efficiency of scrap steelmaking.

The messy metallic shavings enter the grinder from the top opening port, twisted and torn into small piecesby the high-speed running plate gear, then discharged form the bottom sieve. Mesh size can be set according to the requirements of the particle size of the metal shavings.

 Working Principle:

This small metal crusher is a biaxial fine grinder, which consists of worm gear motors, chassis, racks, helical cutter, drive shaft, driven shaft, gear, pinion gear and other components.

Geared Motor adopts Direct Connect worm gear motor, which is mounted directly on the drive shaft.Power is transmitted by gear to the driven shaft and make the cutter on the main and driven shaft to form relative motion, so that the material is crushed by being squeezed, torn and cut in the grinder.

 Application:
 small metal crushers can be used to process various lathe turnings and scrap metal such as cans, cans, paint bucket, thin metal, iron slag, tin, beer bottle caps, aluminum windows and doors, circuit boards, etc. It is suitable for installation in a fixed location for centralized processing of metallic scraps.

The small metal crusher is an ideal grinding equipment applied in the plant of metal smelting and metal recycling.

 Auxiliary Machine

Feeding: chevron conveyor 6m * 0.5m,  Motor: 3kw,
Discharge: Pitched belt conveyor 4m * 0.5m,  Motor: 3kw,
Magnetic roller: 0.15T,
Dust: Fan Φ0.9 * 2.2m + 1.1kw motor
Start cabinet: 30kw 40kw 75kw

 Technical Parameters:
